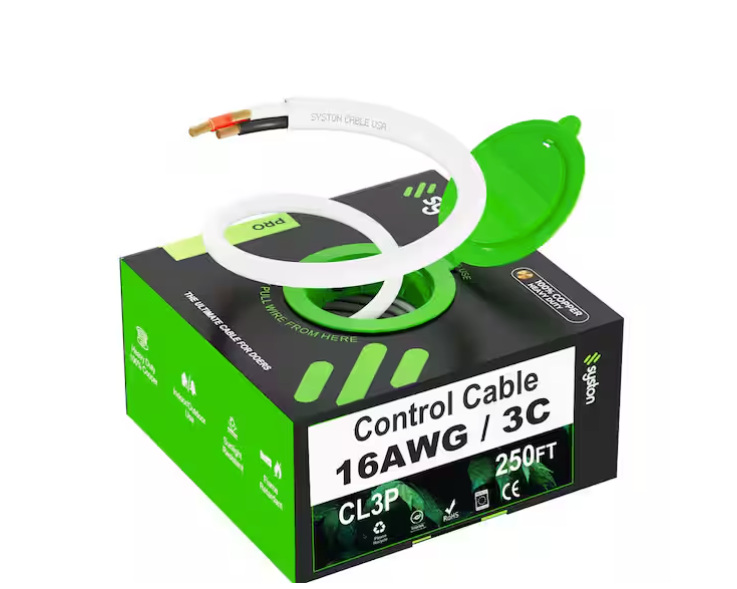

16/3 Heavy-Duty Stranded Copper Low-Voltage Extension Wire – CMP/CL3P – Indoor & Above-Ground Outdoor
16 AWG, 3-conductor stranded copper low-voltage cable for compatible permanent LED lighting extension and control applications.
Important Wire Temperature Requirements
Installation Temperature: 32°F to 140°F (0°C to 60°C)
Do not install, pull, or bend this wire below 32°F or above 140°F.
Operating Temperature: −4°F to 167°F (−20°C to 75°C)
The wire can operate below freezing after installation, but installation must remain within the specified installation temperature range.
The larger 16 AWG conductors provide lower electrical resistance than 18 AWG copper conductors of the same length, helping reduce voltage drop in suitable installations.
This plenum-rated cable is designed for applicable indoor wiring applications. The manufacturer also confirms above-ground outdoor suitability, including occasional rainwater or condensation within its published environmental and temperature limits.
Common Applications
-
Controller-to-first-light extension wiring
-
Longer extensions between compatible permanent lighting sections
-
Attic and interior low-voltage wiring where permitted
-
Protected above-ground exterior wiring, including compatible under-eave lighting channels
-
Installations where 16 AWG conductors are appropriate
Product Specifications
-
Manufacturer: Syston Cable Technology
-

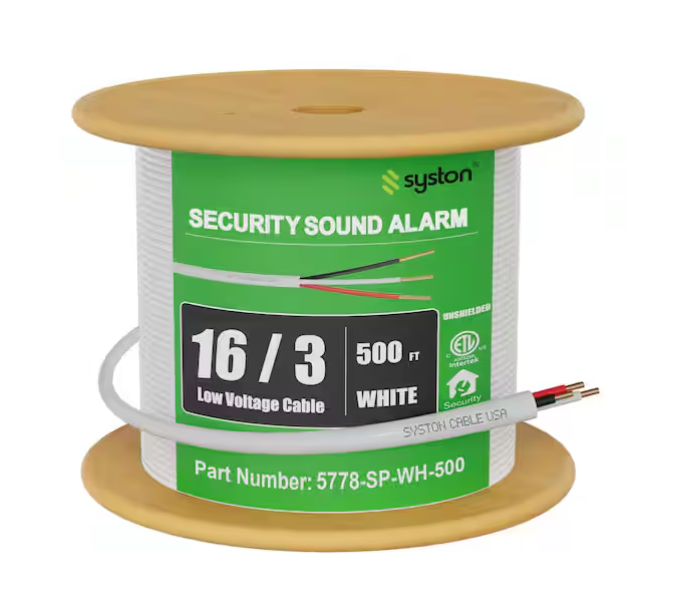

Model: 5778 series
-
Wire gauge: 16 AWG
-

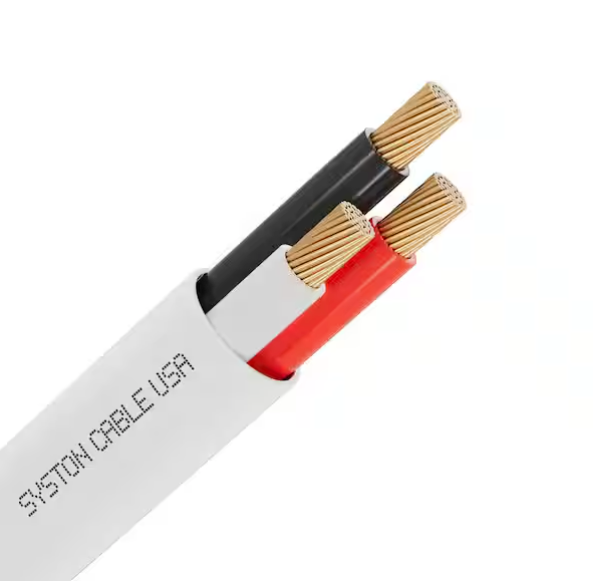

Conductors: 3, stranded bare copper
-
Conductor colors: Black, red and white
-
Cable jacket: Plenum PVC
-

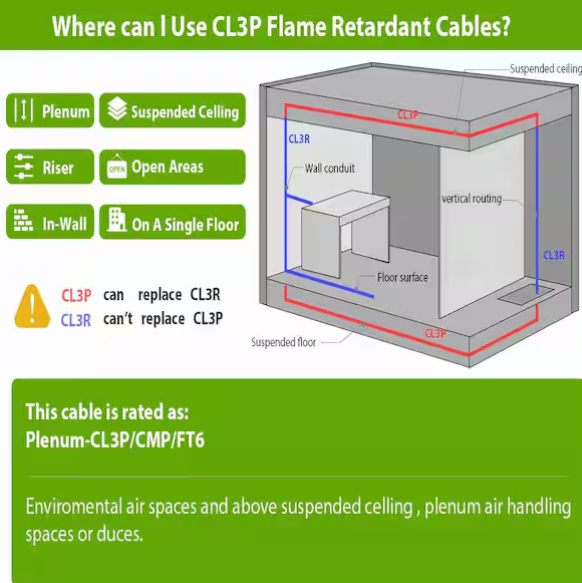

Cable classifications: CMP / CL3P / FPLP
-
Voltage rating: 300V
-
Nominal outside diameter: 0.208 inches
-
Operating/storage temperature: −4°F to 167°F (−20°C to 75°C)
-
Installation temperature: 32°F to 140°F (0°C to 60°C)
-
Outdoor suitability: Above-ground, sunlight-resistant; occasional rain or condensation supported by manufacturer
-
Direct burial: Not rated
-
Water submersion: Not rated
Important Wire Temperature Requirements
Do not install, pull, or bend this wire below 32°F or above 140°F.
Operating Temperature: −4°F to 167°F (−20°C to 75°C)
Important Installation Information
Do not install, pull or bend this cable when its temperature is below 32°F (0°C).
The cable may operate below freezing after installation, provided conditions remain within its published operating limits.
This three-conductor cable may be used in compatible lighting applications requiring positive power, negative power and a data conductor. Verify conductor assignments, current requirements, voltage drop and equipment compatibility before connecting.
Installation Note: Verify that the cable's electrical and environmental ratings are suitable for the intended circuit and installation location. Follow applicable electrical codes and equipment manufacturer instructions.
The cable is not intended for direct burial or water submersion. Above-ground outdoor suitability does not establish a separate wet-location certification.
